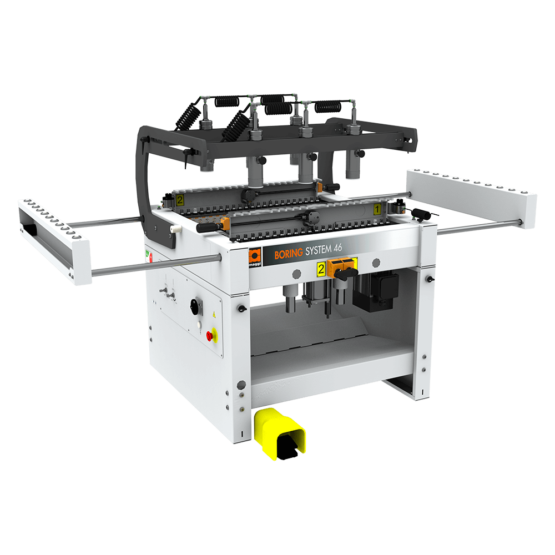

Maggi BORING SYSTEM 46

For vertical double-row line drilling on furniture sides. The ideal solution for bookcasebookshelf and wardrobe manufacturers.

-Small footprint: 2 sqm

-Faster than a single-head boring machine

Category:

Description

N.2 vertical parallel boring heads with 23 spindles each.

Distance between the heads:  Max 650 mm / Min. 130 mm

Distance between first and last spindle: 704 mm – 32 mm intereaxis

Quick-change spindles

Boring-depth adjustment on numeric counters

Ready to be connected to a dust collector

Manufactured abiding by EC standards
