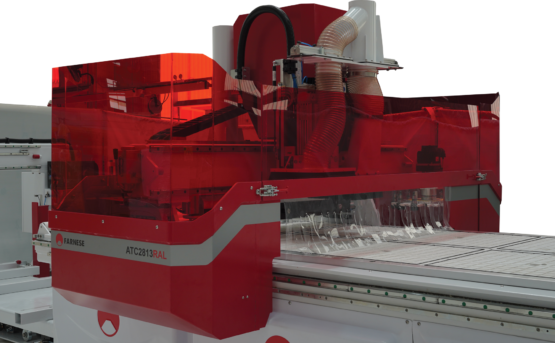

Fusion ATC 25/13AL

DESIGN FEATURES

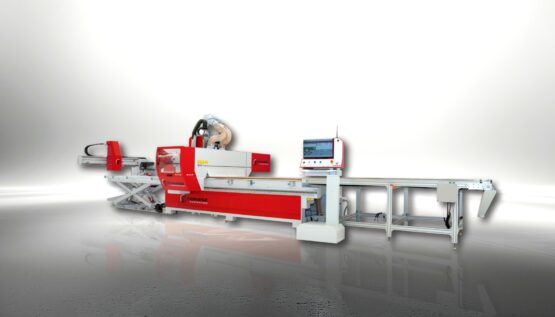

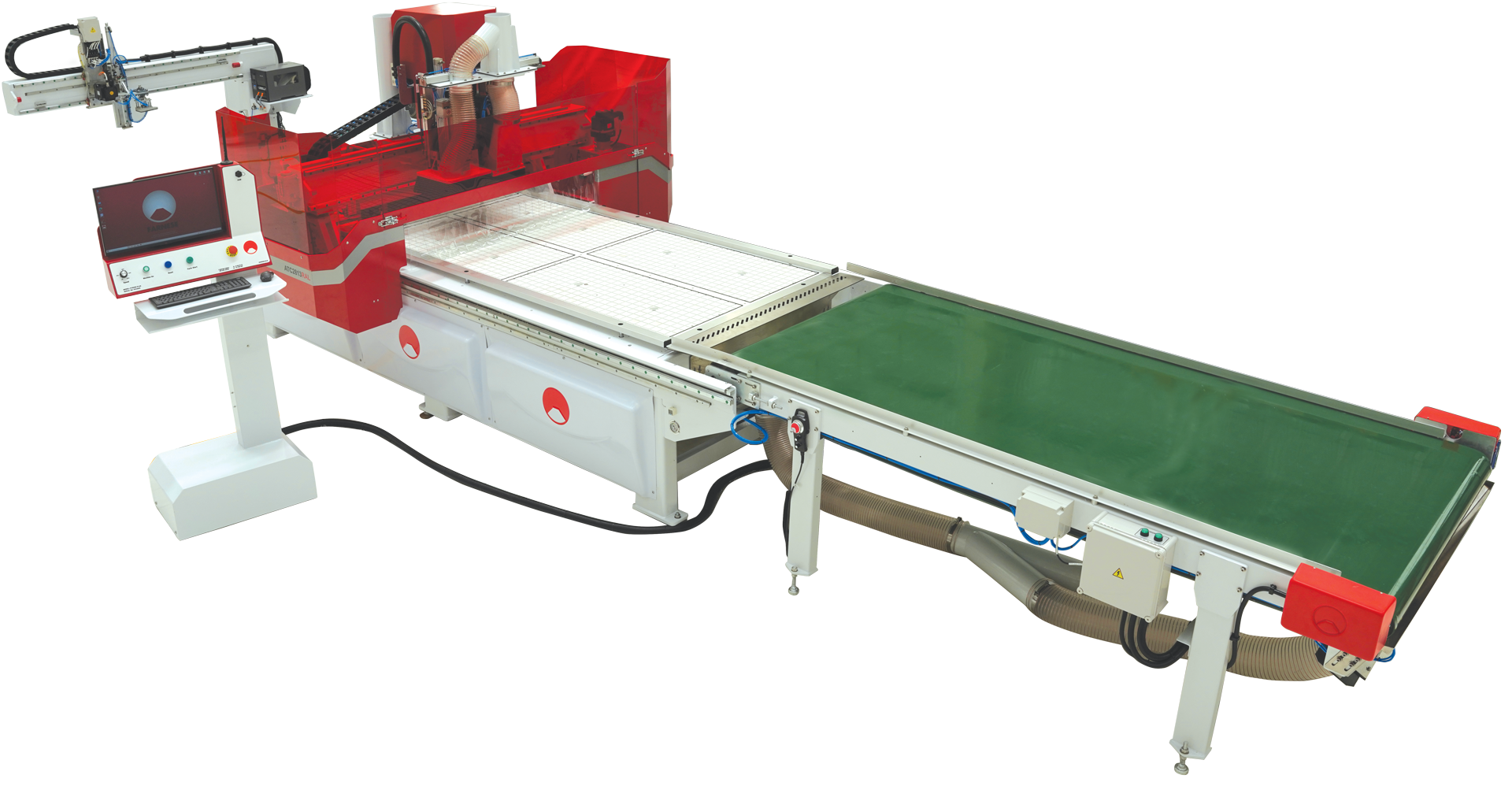

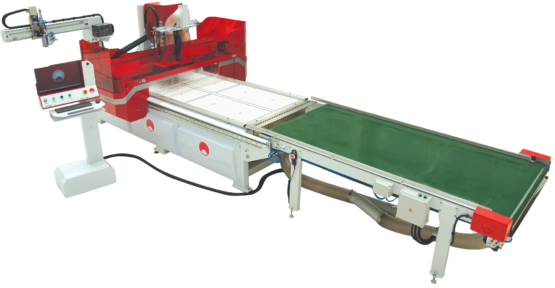

Extremely efficient production line

Automatic Labelling

Automatic panel loading

Automatic panel positioning

Automatic off loading

Powerful HSD Electro spindle

Versatile HSD 5×4 drilling head

User friendly Osai controller



Category:

Description

TABLE SIZE

Table size: 1220mm x 2440mm

Larger models up to 2100mm x 11000mm available

SPINDLE

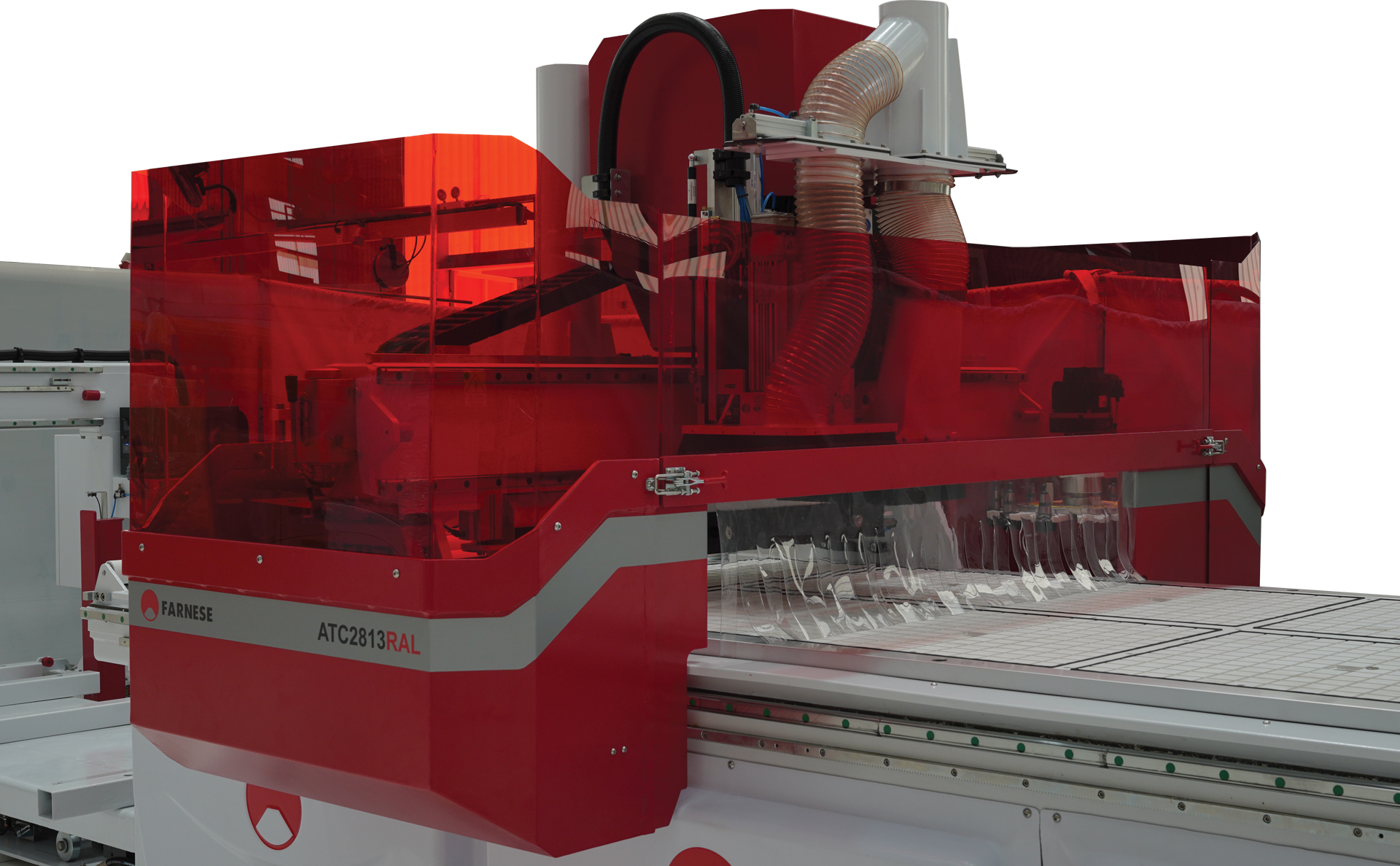

High precision heavy-duty 9kW (12.0Hp) HSD router with internal cooling fan and ISO30 collet. Manufactured in Italy, HSD routers are renowned worldwide for their superior quality and durability. The Automatic tool change feature combined with left or right spindle rotation make this a very versatile machine that is also suitable for counter tops.

PC CONTROL

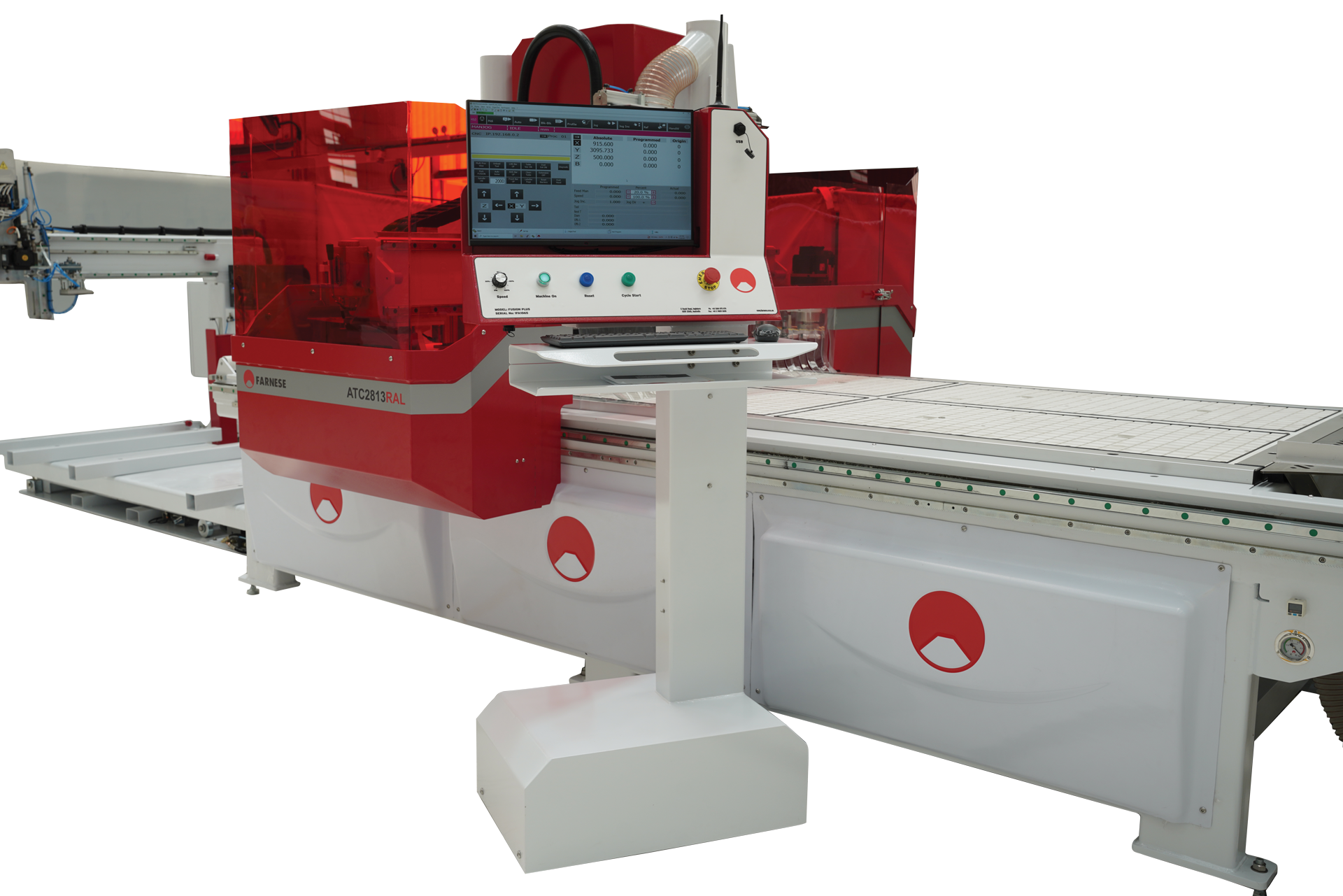

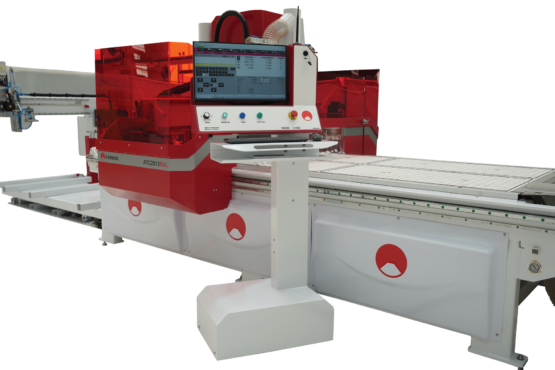

On-board PC with user friendly Windows 10 operating system. Network interface facility for file sharing. Osai Controller from Italy



TOOL RACK

Equipped with a gantry-mounted,

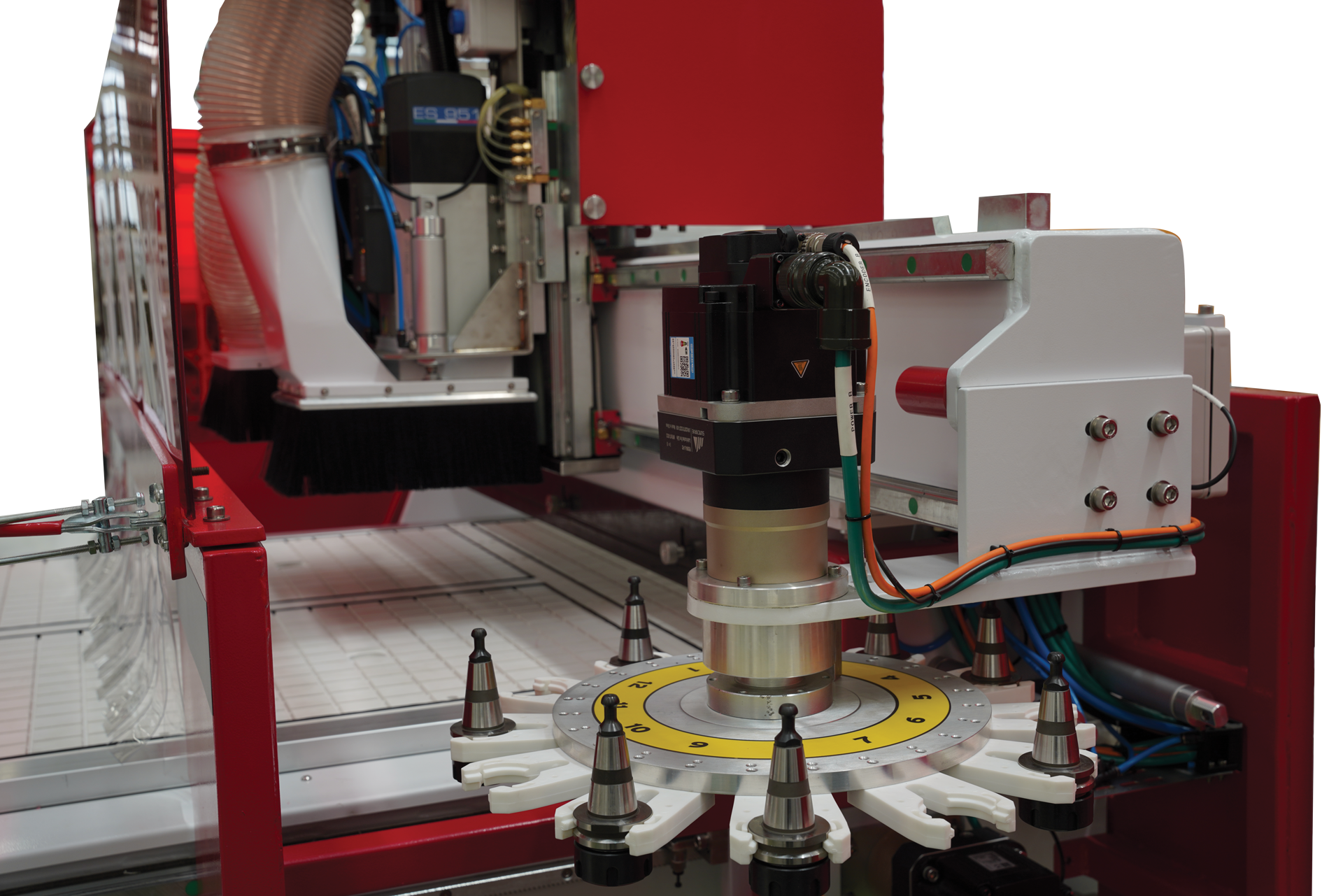

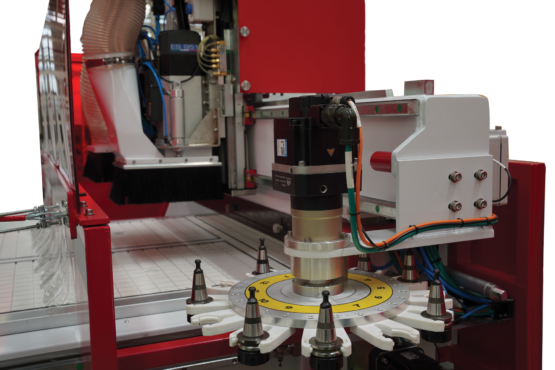

12-slot rotary tool magazine, allowing for quick and easy storage and tool changes.

The rotary tool changer saves time by travelling with the gantry, so the spindle doesn’t need to travel as far every time you need to grab a new tool.

Auto Label/Auto load Unit

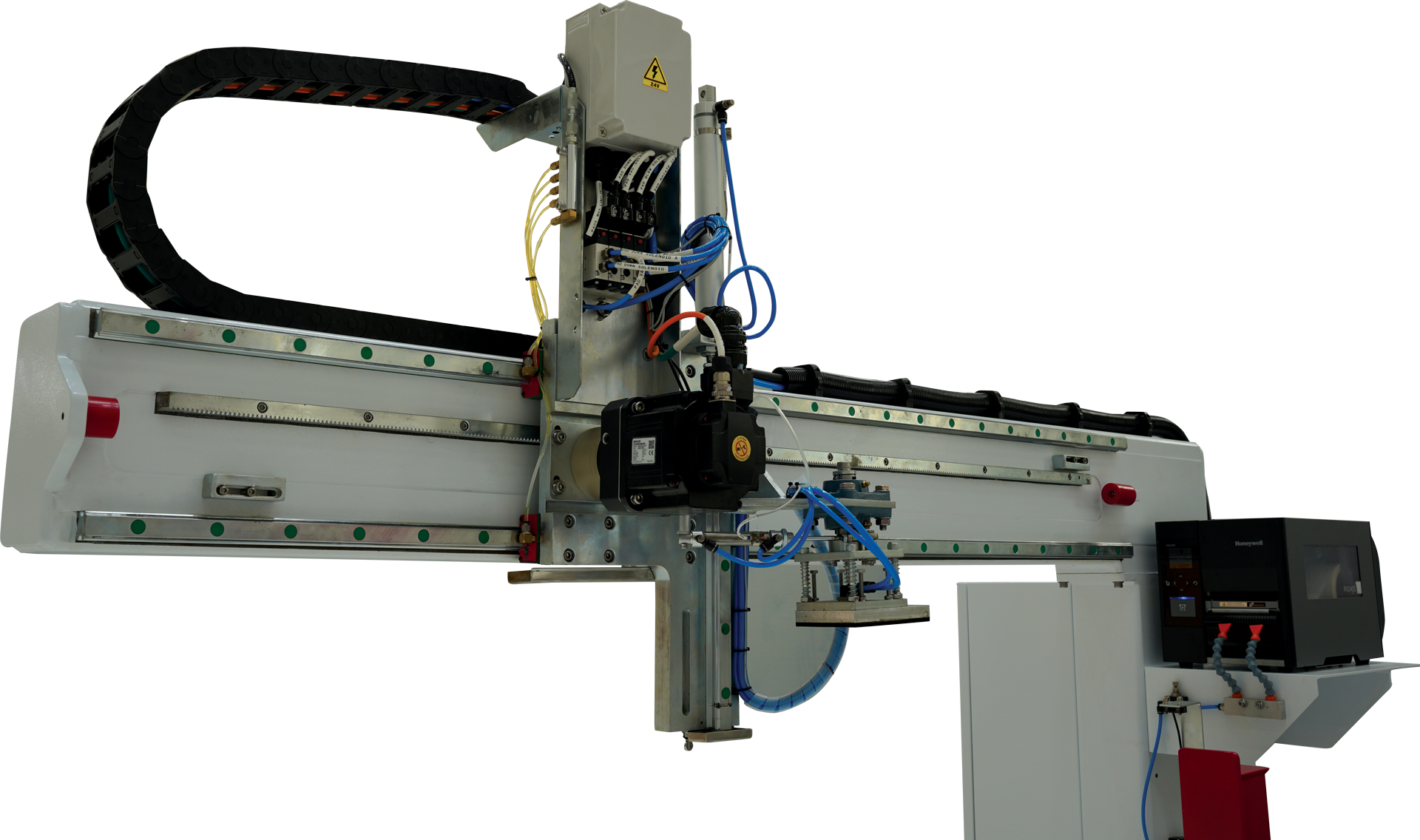

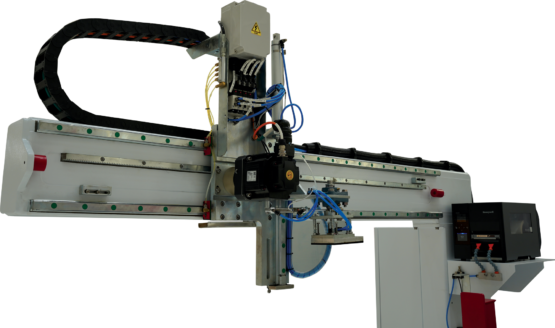

The Auto Label unit automatically places the part stickers in the correct place while the CNC is cutting the previous sheet. The stickers show what edge needs to be edged and what cabinet it belongs to

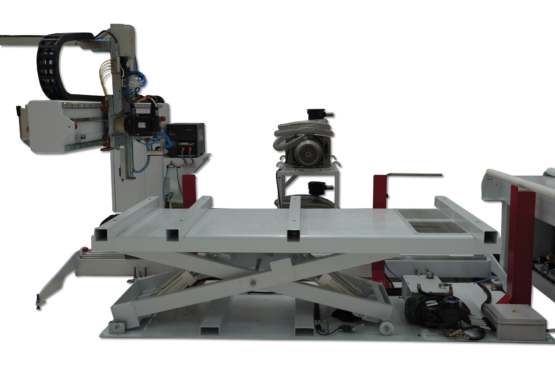

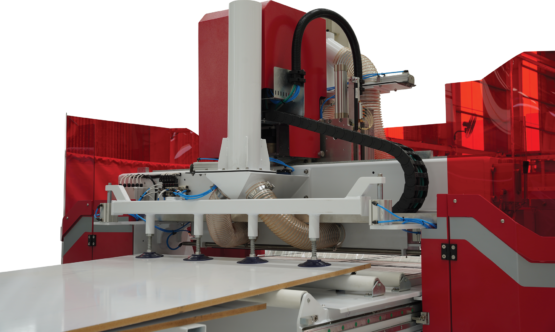

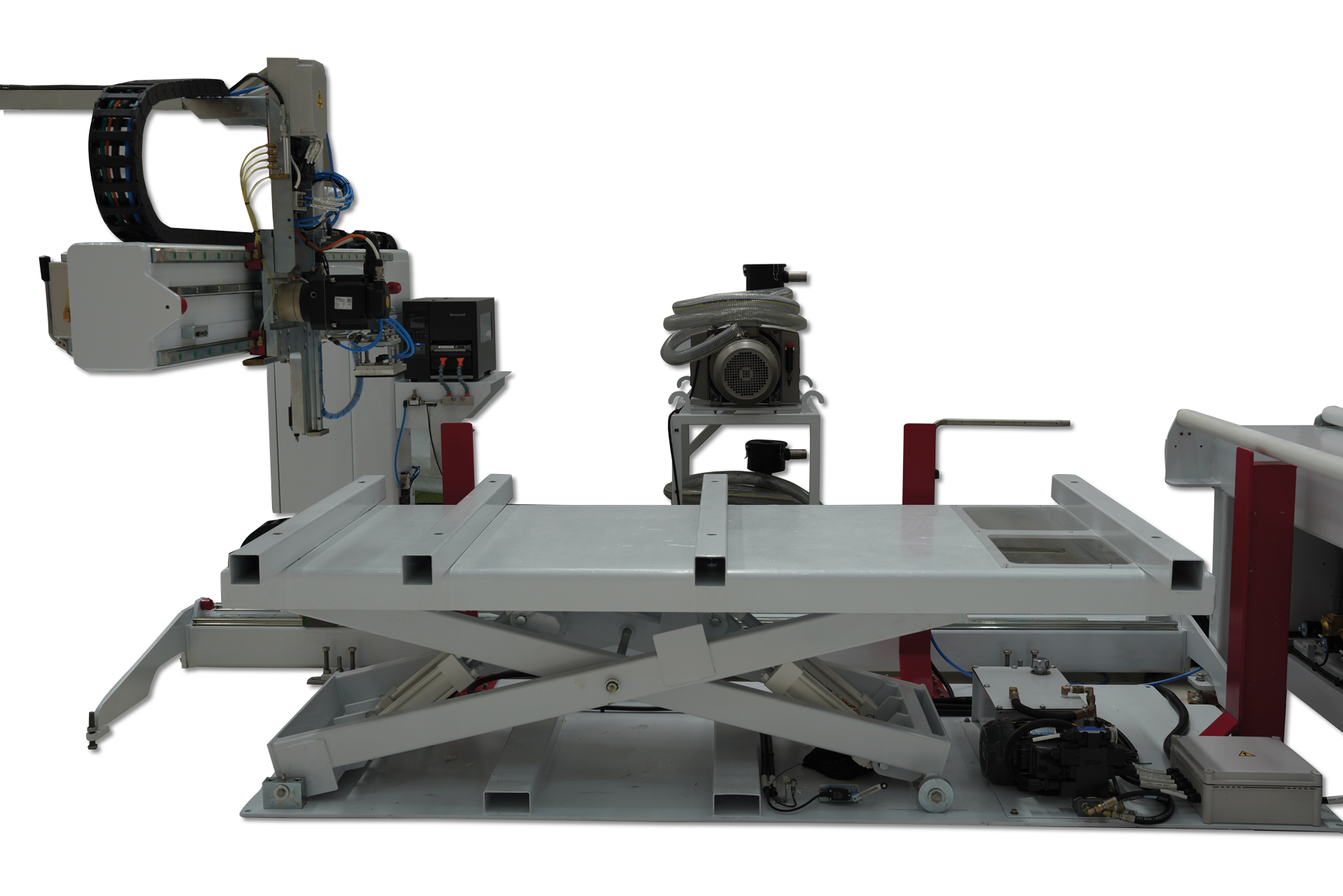

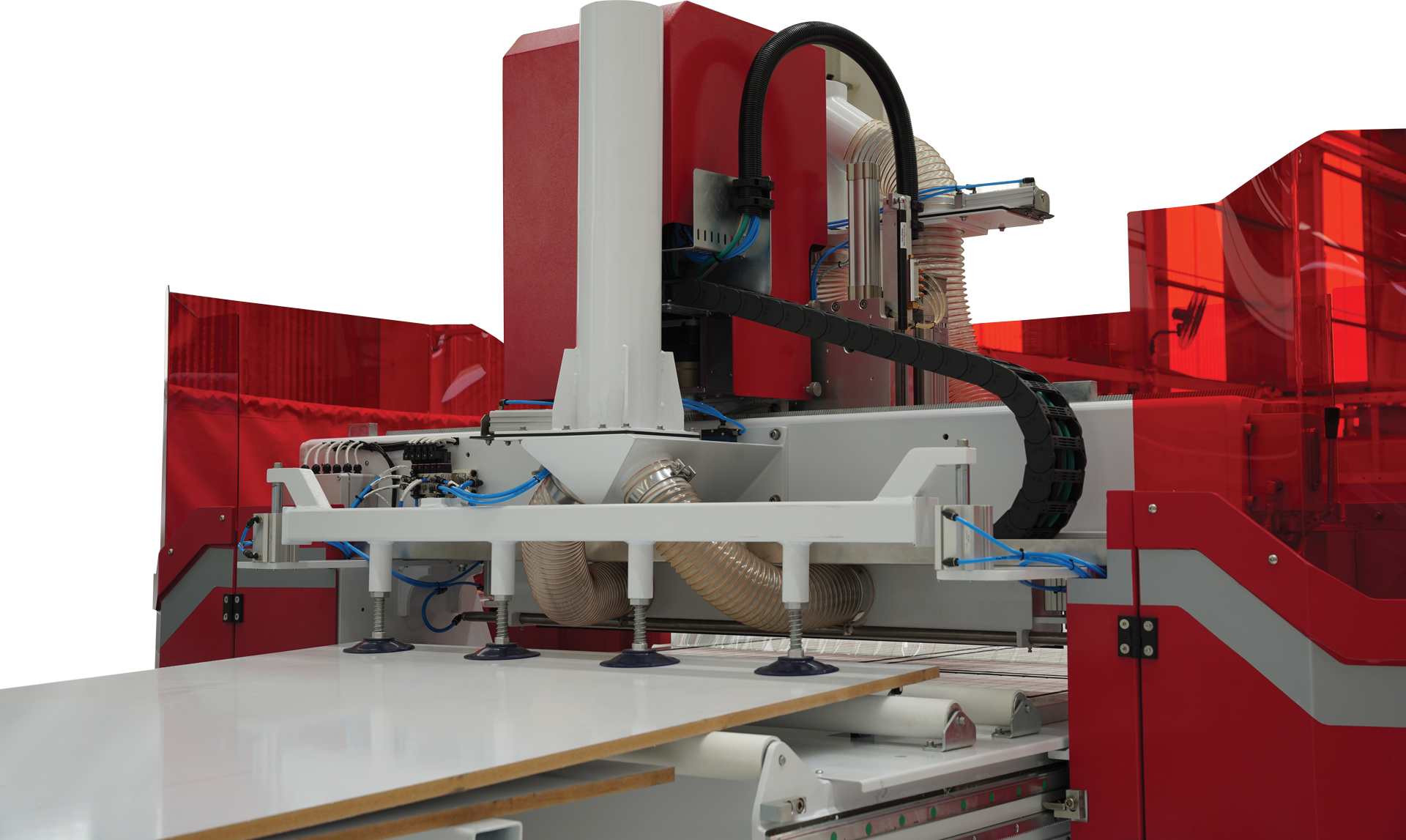

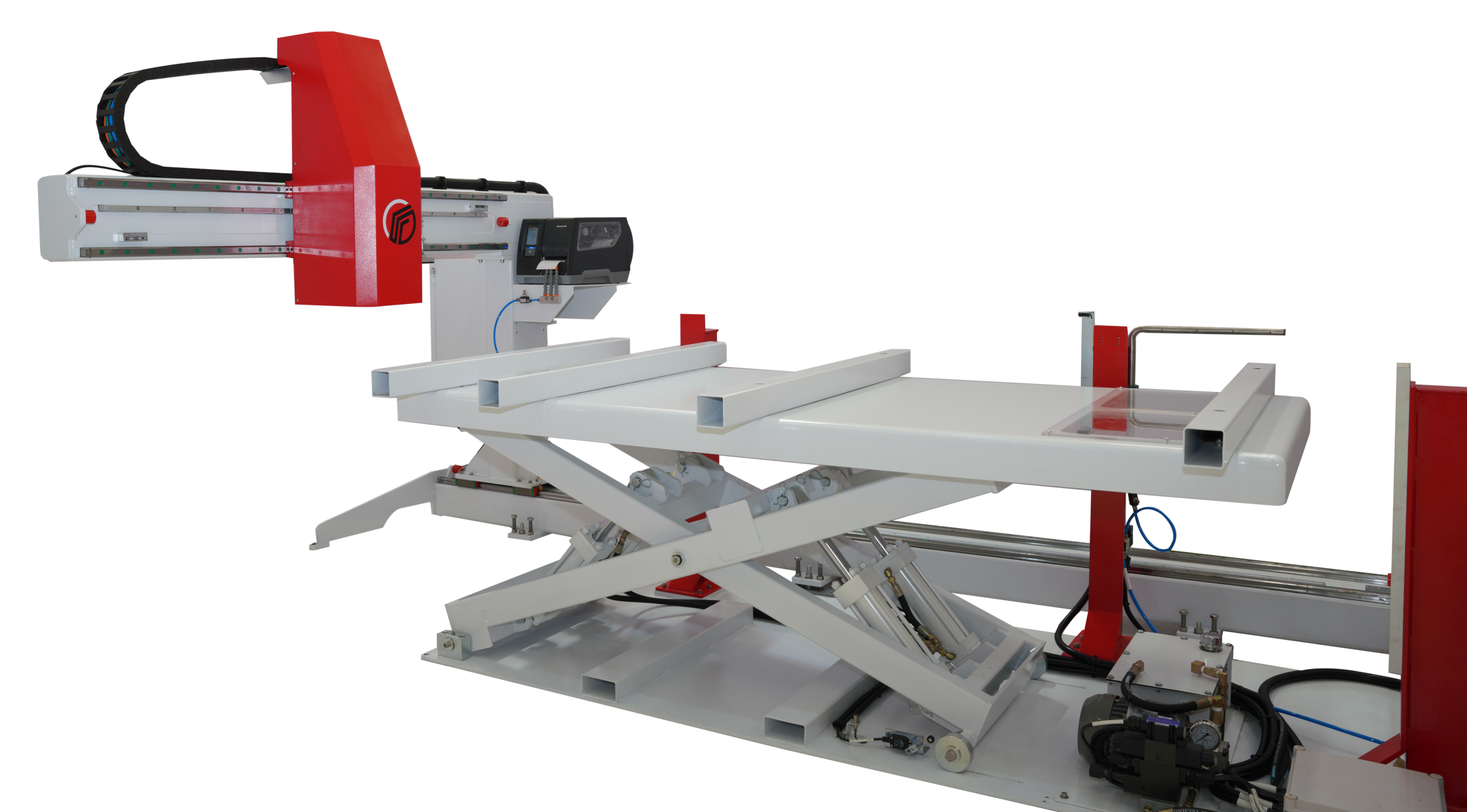

The Auto Load unit has a scissor lift to get the board to the correct height, and vacuum cups to lift the board onto the CNC Bed
Honeywell Thermal Printer

Off feed Table

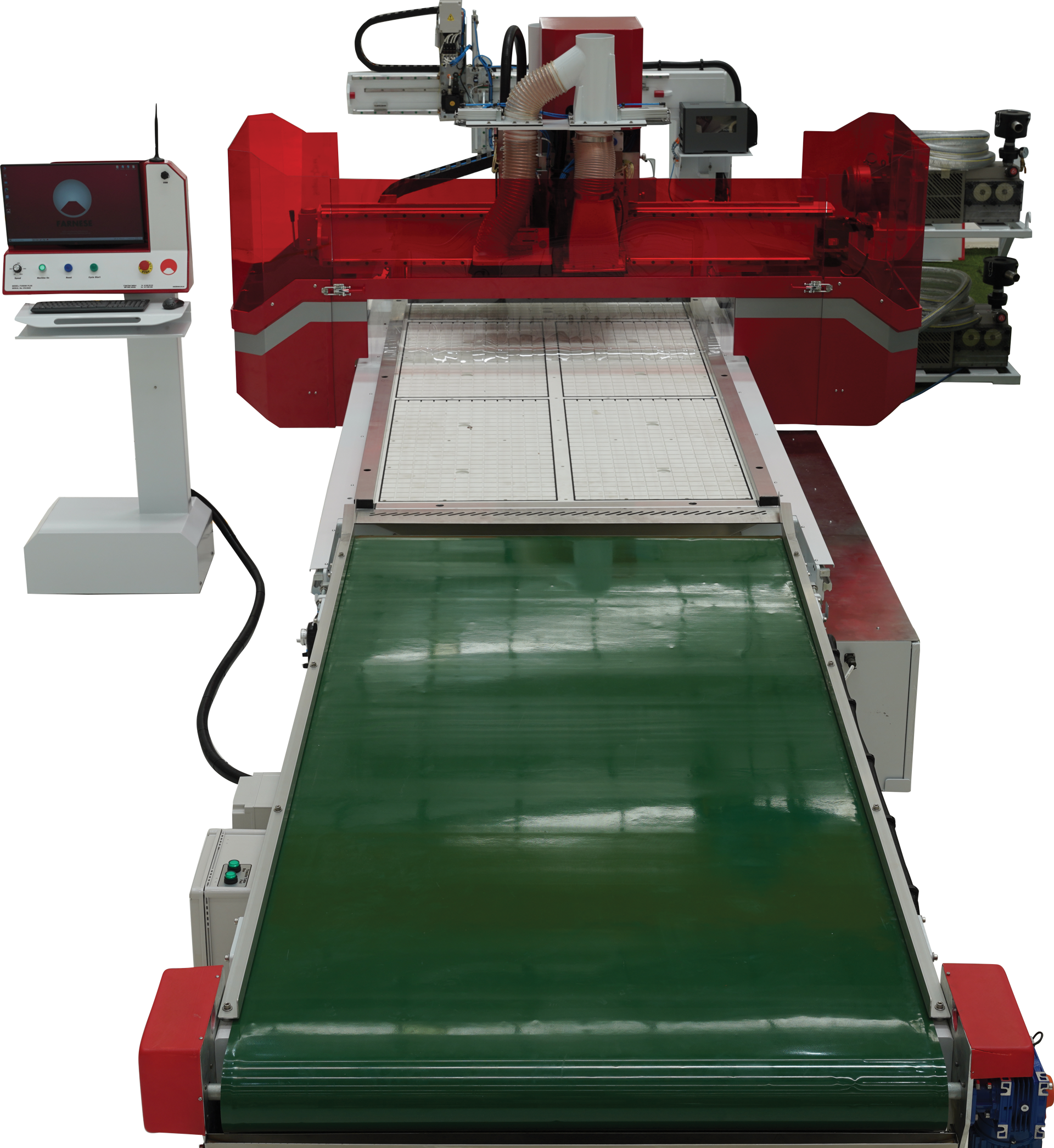

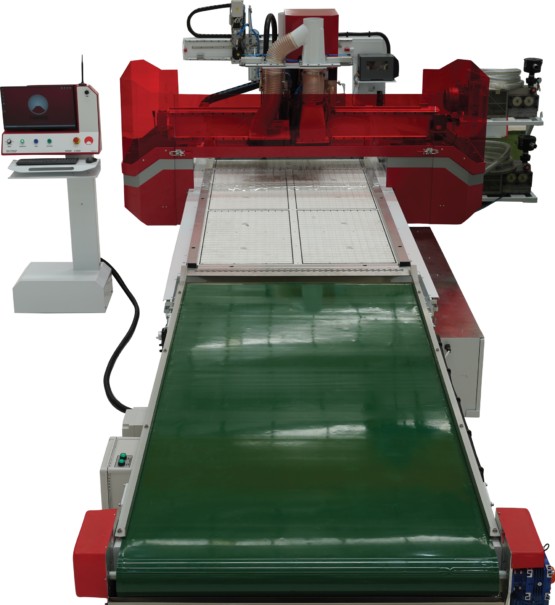

Belt feed off feed table, allows the CNC to Automatically push the parts off the CNC bed and onto the Off feed table.  The operator can unload the off feed table while the cnc is cutting the next sheet



PHENOLIC TABLE TOP

There are 4 individually controlled vacuum zones. The table surface has a gasket matrix configuration allowing various vacuum options e.g. spoilboards and jigs.

VACUUM PUMP

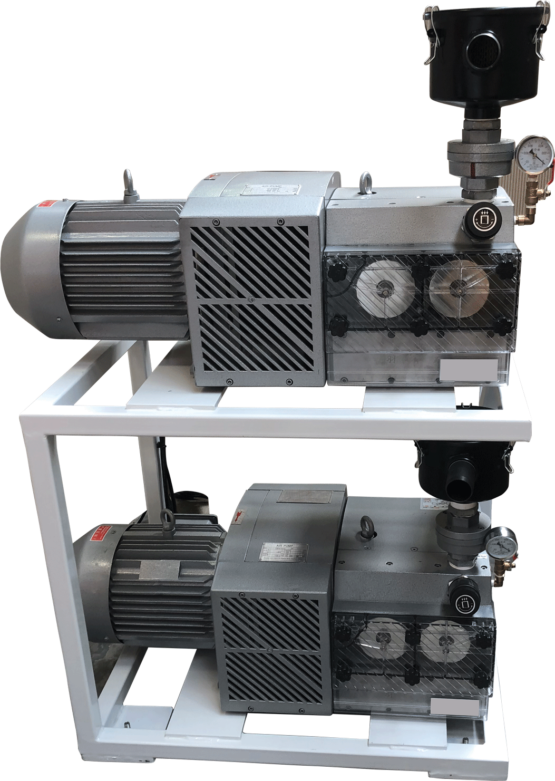

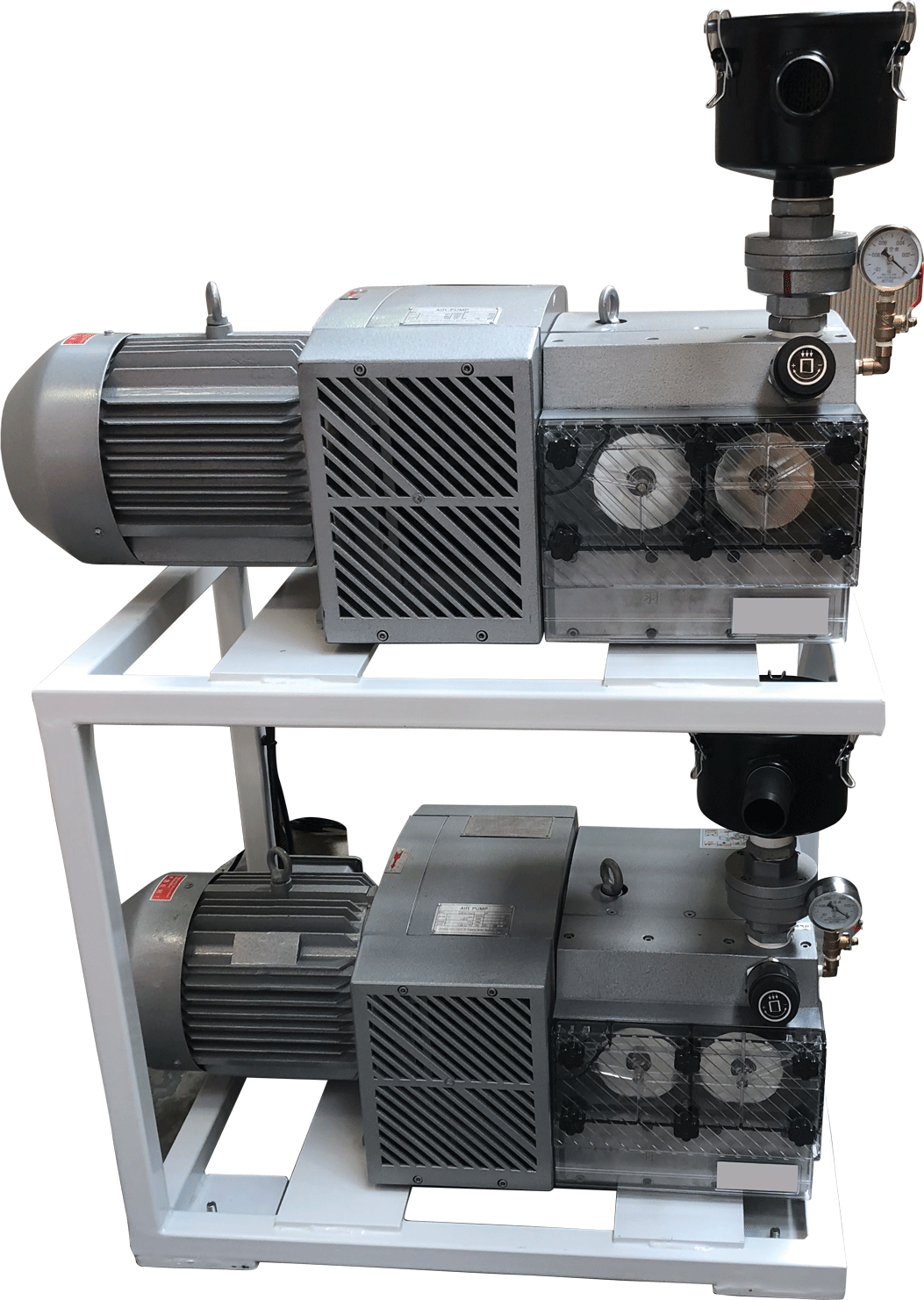

Vacuum for the table top is provided by two quality 5.5kW(7.5Hp) rotary vane vacuum pump. These two pumps displaces 320 cubic metres perhour. Oil-free discharge gas is guaranteed, even in adverse operating conditions.

DRIVE GUIDE SYSTEM

Superior quality linear guides and bearings units are used on all three of the machine’s axis. Precise movement along the X and Y axis is achieved via induction hardened oblique rack and pinion drive systems. Z axis (vertical) movement accuracy is assured via a precision ground re-circulating ball screw.
